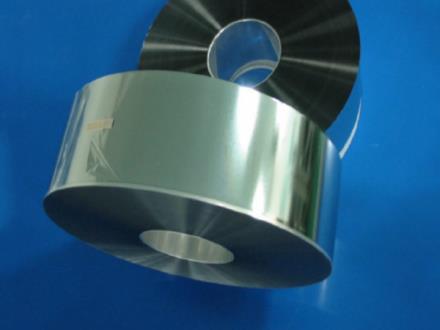

Metallized Polypropylene Film Series

Characteristic:

We use imported ultra-high purity electrical-grade polypropylene resin as raw material, implementing flat-film method of two-way stretch, with good thickness uniformity, high compressive strength, dielectric loss, easy rolling and other excellent physical and electrical properties. With a variety of capacitor impregnated oil compatibility, the National Power Capacitor Test Center proves our products are perfectly in line with the performance of the power capacitor insulation media.

Contact Us

Features:

Characteristic:

We use imported ultra-high purity electrical-grade polypropylene resin as raw material, implementing flat-film method of two-way stretch, with good thickness uniformity, high compressive strength, dielectric loss, easy rolling and other excellent physical and electrical properties. With a variety of capacitor impregnated oil compatibility, the National Power Capacitor Test Center proves our products are perfectly in line with the performance of the power capacitor insulation media.


Applications:

Widely used in safety regulation, power machines, power electronics, electric heating and other related high-voltage capacitors.

Item Unit Standard Test Conditions
Tensile Strength MD Mpa ≥127 100mm/min @ 23℃，50％r.h
TD Mpa ≥200
Elongation at Break MD % ≥100
TD % ≥25
Heat Shrinkage (Normal) MD % ≤4.0 10 min @ 120℃
TD % ≤1.8
(High Tempreature)
MD % ≤3.5
TD % ≤0.8
Voidage Average value % ≤1.5 23℃
Surface Roughness μm 0.05—0.15 23℃
Dielectric Strength VDC /μm ≥300 23℃
Relative Permittivity 2.2 50Hz or 1kHz 23℃
Volume Resistivity Ω.m 1.0×1015 23℃
Dielectric Loss ≤2×10-4 50Hz or 1kHz @23℃
